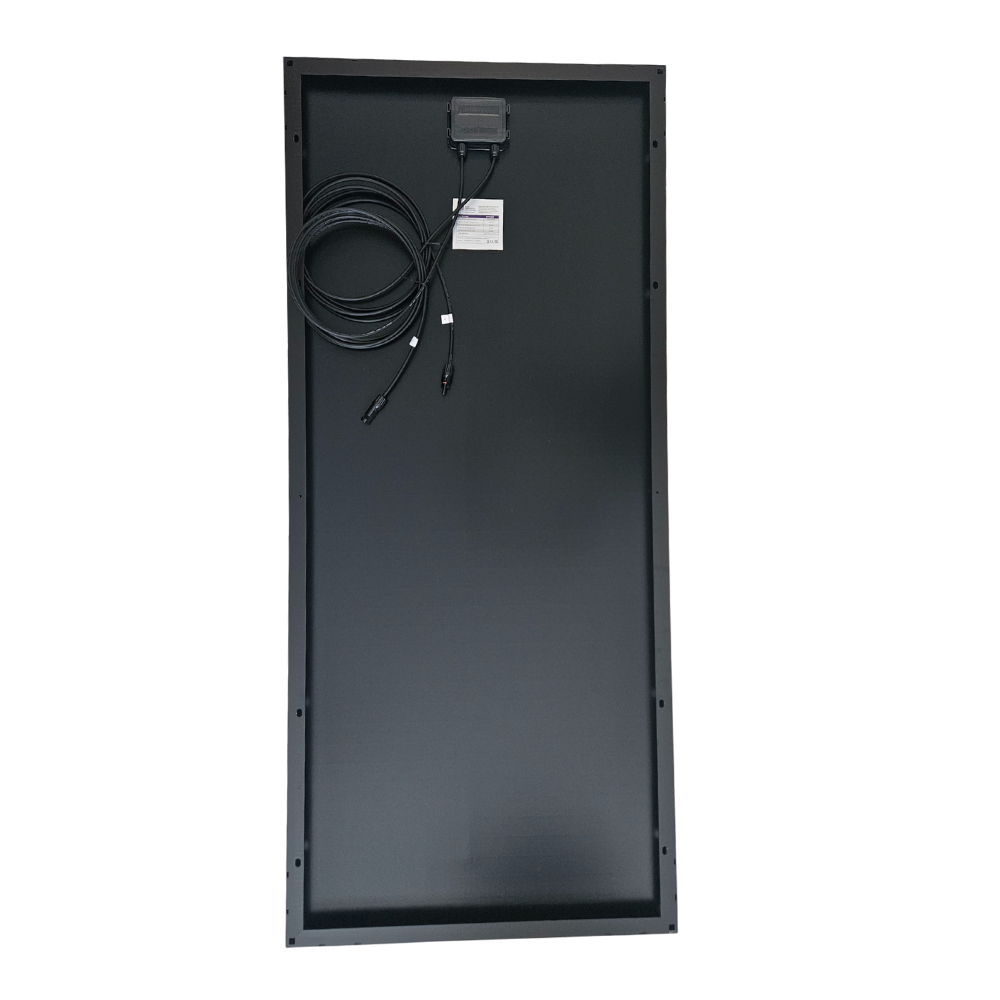

200W Rigid Mono High Density Solar Panel

Made using innovative solar cell technology designed to deliver superior efficiency, the new 200W Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering more than 1KW of power per day, the 200W MHD panel is designed for seriously power hungry applications where multiple panels maybe joined in series or parallel to create a significant solar array. This smart, all-black panel panel is supplied with a 1m cable fitted with MC4 connectors, two additional 3m cables with MC4 connectors and user manual. Note – A charge controller will be needed to protect a battery from reverse feed and overcharging... View more

Add Charge Controller
Which controller do I need?
£355.00
Product code: n/a
Product information

Overview

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Rigid Solar Panels.

Build your perfect kit starting with a premium solar panel

With power ratings up to 200W, our rigid MHD solar panels fulfil a variety of energy needs ranging from a continuous trickle feed of power to prevent battery drain in caravans, motorhomes and boats to creating energy self-sufficiency for off-grid travel. For more information about what sets the PV Logic Rigid MHD range apart from other solar panels click here.

A charge controller should be used with the all panels in the rigid MHD range to protect the battery from being overcharged and to prevent reverse current drain.

Put yourself in control

Our 10A and 20A PWM charge controllers are capable of charging 12V and 24V single or dual batteries.

The MPPT Pro Plus charge controller range increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from a solar panel system to actively match any battery's requirements.  This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

The MPPT charge controllers comes with free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing. The app software links your smartphone to the controller and shows performance figures for your leisure battery.

Complete your kit with fixing brackets and stands

If you want the complete kit to professionally install your solar panel on your caravan, campervan or motorhome choose the 200W Mono High Density Solar Panel Roof and Deck Top Kit to get best value. The 200W roof and deck top kit come with a 20Ah charge controller and premium aero brackets or corner brackets. The complete kit option also gives you the opportunity to upgrade to the 15A (dual battery) MPPT Pro, 20A or 30A MPPT Pro Plus (single battery) charge controllers.

Features

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Tough and robust
Tough and robust
10-year panel warranty
10-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Vmp (VDC) Imp (A) Voc(V) Isc(A)
100W 1150 x 460 x 35mm 6.9 600 31.92 10A 18.8 5.32 22.2 5.64 Download Tech Spec
125W 988 x 670 x 35mm 7.5 750 23.52 10A 31.9 3.92 37.6 4.15 Download Tech Spec
150W 1150 x 670 x 35mm 6.9 900 47.88 10A 18.8 7.98 22.2 8.46 Download Tech Spec
200W 1520 x 670 x 35mm 11.8 1200 48 20A 25.0 8.00 29.5 8.48 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

 Solar Panel Kit Contents

1 x 200W MHD solar panel with 2 x 1m cable with MC4 connectors attached
2 x 3m cable with MC4 connectors at one end, bare cable at the other
1 x user manual
10 year warranty
Option to add the charge controller of your choice
