55W Mobile Flexi Double ETFE Solar Panel Deck Top Kit

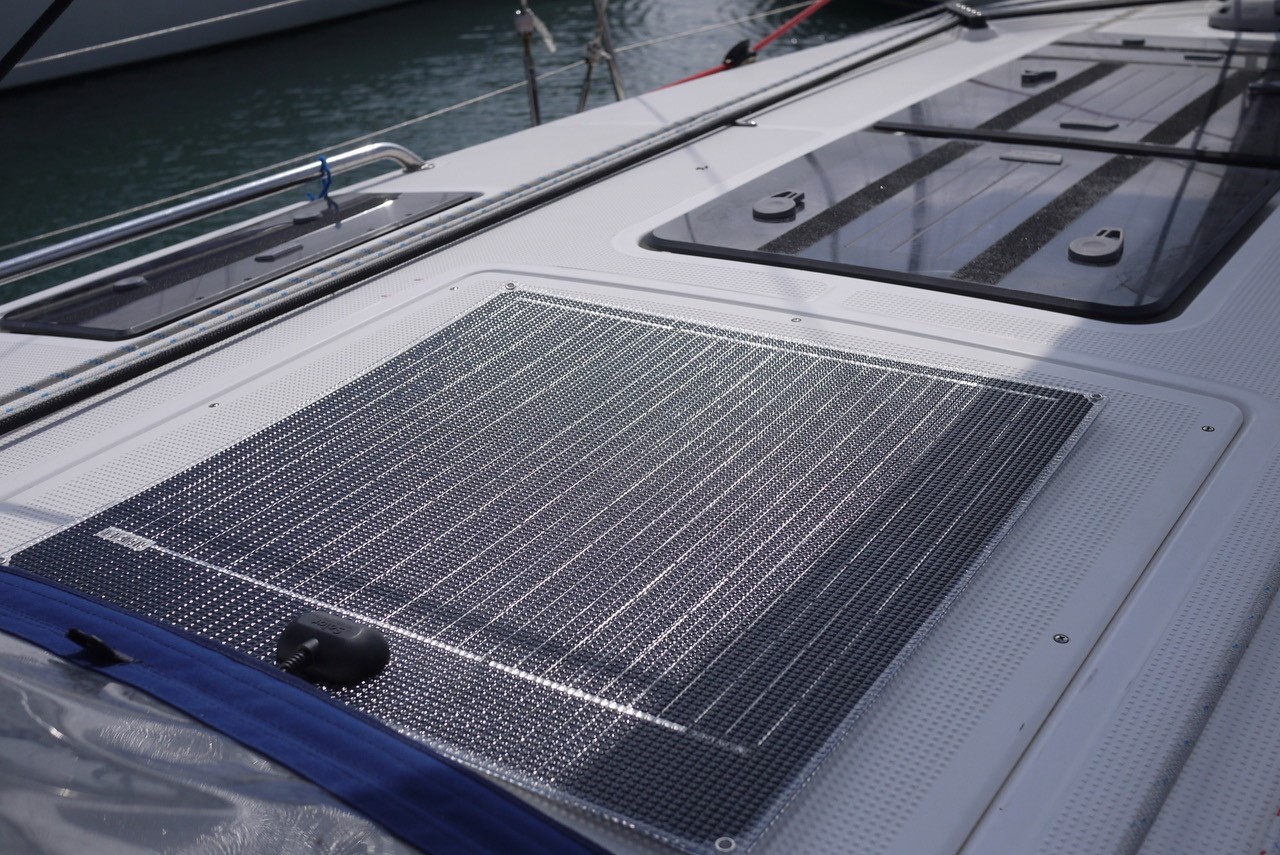

This new mobile deck top kit with 10A in-line charge controller is the perfect option for keeping the 55W double ETFE solar panel mobile so you can store it away when not in use. The cabling supplied in the kit ensures the solar system is set up and ready for quick deployment. When you want the solar panel to generate energy, just connect the Wago terminal conectors to the solar panel cable and the system is complete. Measuring 600x600mm, the panel is shaped to fit a boat hatch and it can deliver up to 330W a day to ensure the leisure battery is charged and ready for use. The deck top kit is supplied with a 4m cable (attached to the panel), 10Ah in-line charge controller, battery connector cable with crocodile clips, battery connector cable with ring terminals and Wago terminal connectors.... View more

£315.00
Product code: n/a
Product information

Overview

Product support

Find fitting instructions, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Flexi Solar Panels.

PV Logic Flexi solar panels are the ultimate choice for the challenges of the marine environment

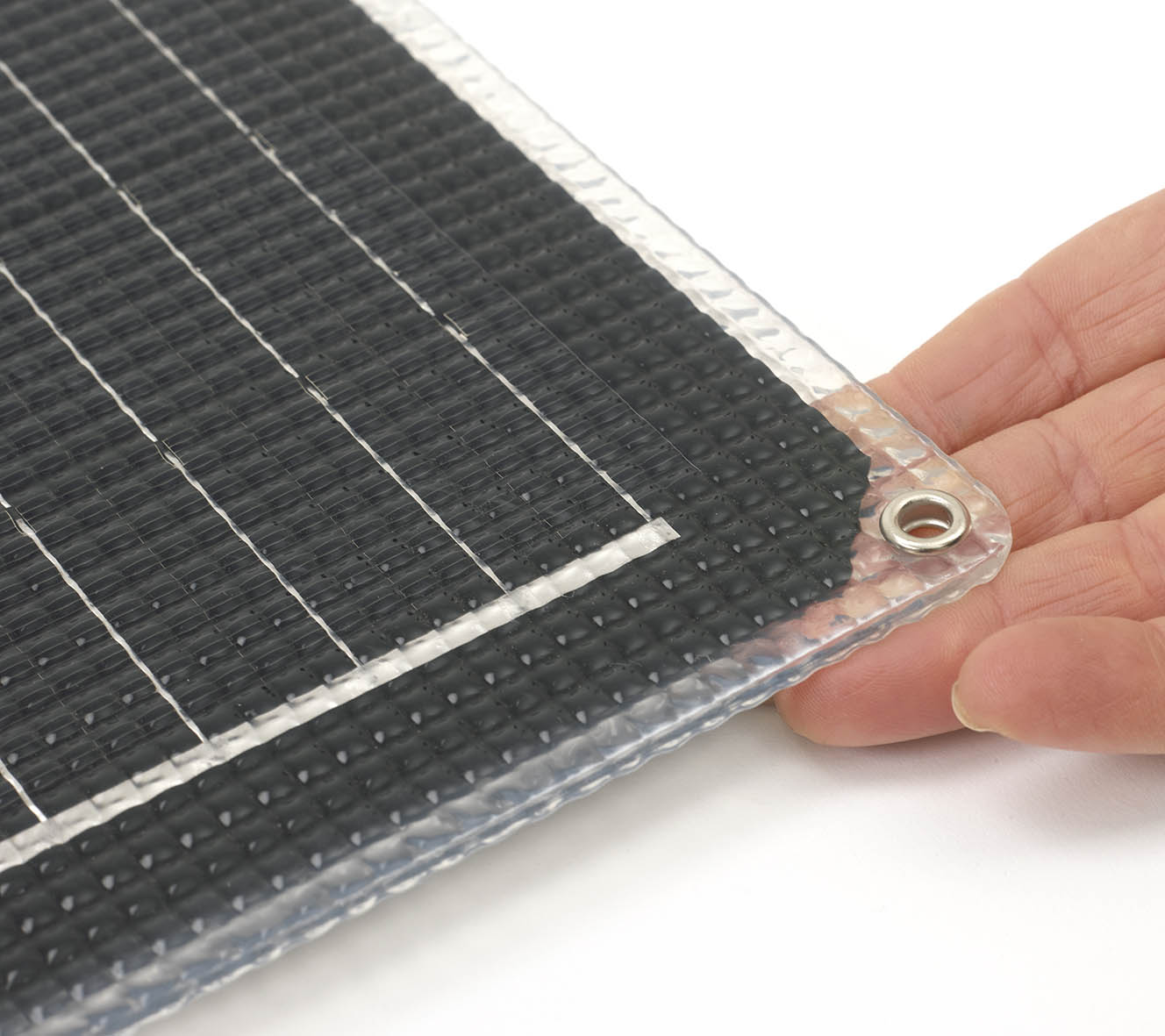

The 55W panel has stainless eyelets in each corner for securing the panel with stainless steel fixings.

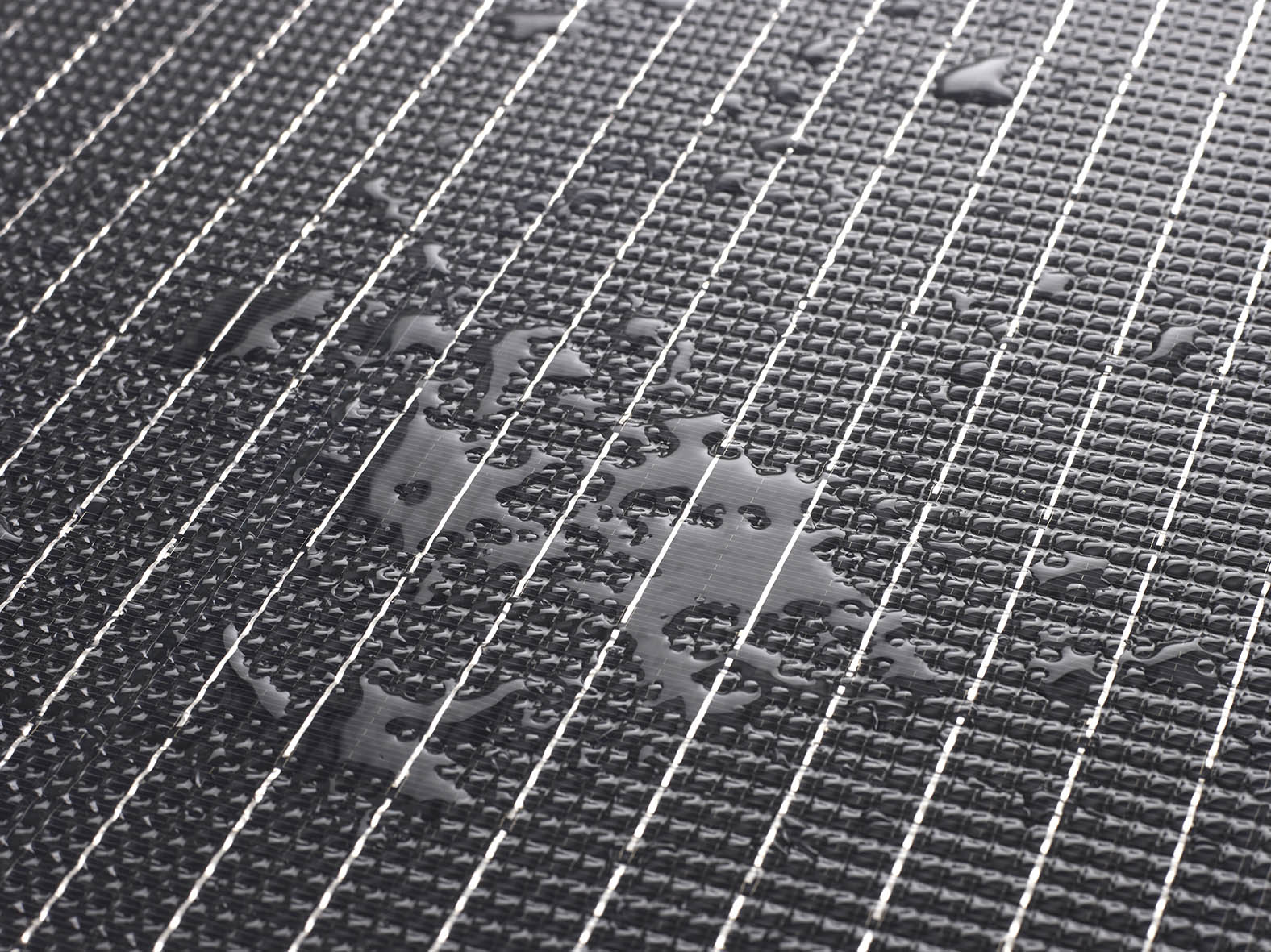

Completely waterproof

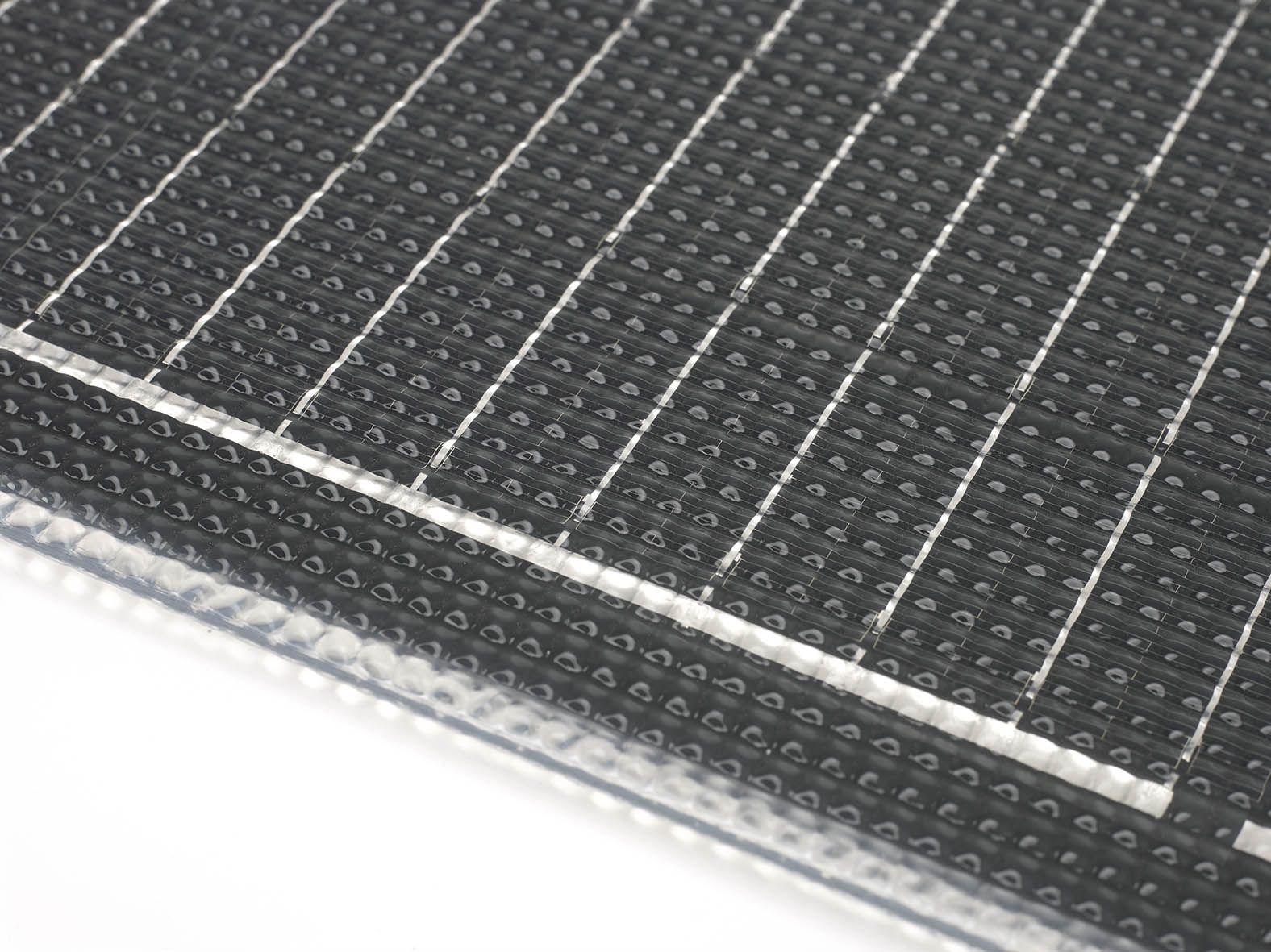

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Features

High efficiency crystalline cell for all weather charging
High efficiency crystalline cell for “all weather” charging
Water resistant, robust construction for outdoor use.
Water resistant, robust construction for outdoor use.
In built diode protects against battery discharge
In built diode protects against battery discharge
Salt spray tested
Salt spray tested
Tough and robust
Tough and robust
UV light tested
UV light tested
2-year panel warranty
2-year panel warranty

Technical Specification



Power Size Weight
(kg)
Watts per
day (W)
Amp hours
per day (A)
Charge
Controller
Pmax (WP) Vmp (VDC) Imp (A) Voc(V) Isc(A)
5W 240 x 250 x 4mm 0.36 30 1.68 N/A 5 17.6 0.28 21.9 0.31 Download Tech Spec
10W 380 x 250 x 4mm 0.56 60 3.42 N/A 10 17.6 0.57 21.9 0.61 Download Tech Spec
20W 475 x 345 x 4mm 0.79 120 6.84 10Ah 20 17.6 1.14 21.9 1.23 Download Tech Spec
55W Double ETFE 600 x 600 x 4mm 2.6 330 19.32 10Ah 55 17.1 3.22 20.0 3.78 Download Tech Spec
60W Double ETFE 395 x 880 x 4mm 2.8 360 19.8 10Ah 60 18.2 3.30 21.3 3.46 Download Tech Spec
60W 1450 x 315 x 4mm 3 360 20.22 10Ah 60 17.8 3.37 22.1 3.64 Download Tech Spec
80W 806 x 665 x 4mm 3.75 480 27.3 10Ah 80 17.6 4.55 21.9 4.91 Download Tech Spec
100W 1000 x 665 x 4mm 4.3 600 36.84 10Ah 100 17.6 6.14 21.9 6.68 Download Tech Spec
100W Rear Exit 980 x 650 x 4mm 4.2 600 34.08 10Ah 100 17.6 5.68 21.9 6.14 Download Tech Spec
120W 1160 x 665 x 4mm 5.6 720 40.92 10Ah 120 17.6 6.82 21.9 7.36 Download Tech Spec
150W 1515 x 665 x 4mm 6.7 900 51.12 10Ah 150 17.6 8.52 21.9 9.2 Download Tech Spec
150W Rear Exit 1475 x 665 x 4mm 6.7 900 51.12 10Ah 150 17.6 8.52 21.9 9.2 Download Tech Spec


Key

  • Vmp - Nominal voltage
  • Imp - Nominal current
  • Isc - Short circuit current
  • Watts and Amp hours/day based on six hours of average daily peak sunlight hours.

Contents (panels kits)

1 x 55W semi-flexible double ETFE solar panel
1 x 4m cable (attached)
1 x 10A in-line charge controller
1 x Wago terminal connector
1 x Connecting cable with crocodile clips
1 x Connecting cable with ring terminals






Warranty

Solar Panel
Two year module warranty
Charge Controller
Two year product warranty

Please note

All of our semi flexible panels will only bend from the top (has the cable and logos) to the bottom a maximum of 10% of panel length.
Bending the panel greater than this, or trying to bend the panel from left to right will possibly damage the panel and also invalidate your warranty.
