60W Flexi Double ETFE Solar Panel

Overview

PV Logic Flexi solar panels are the ultimate choice for flat or slightly curved surfaces.

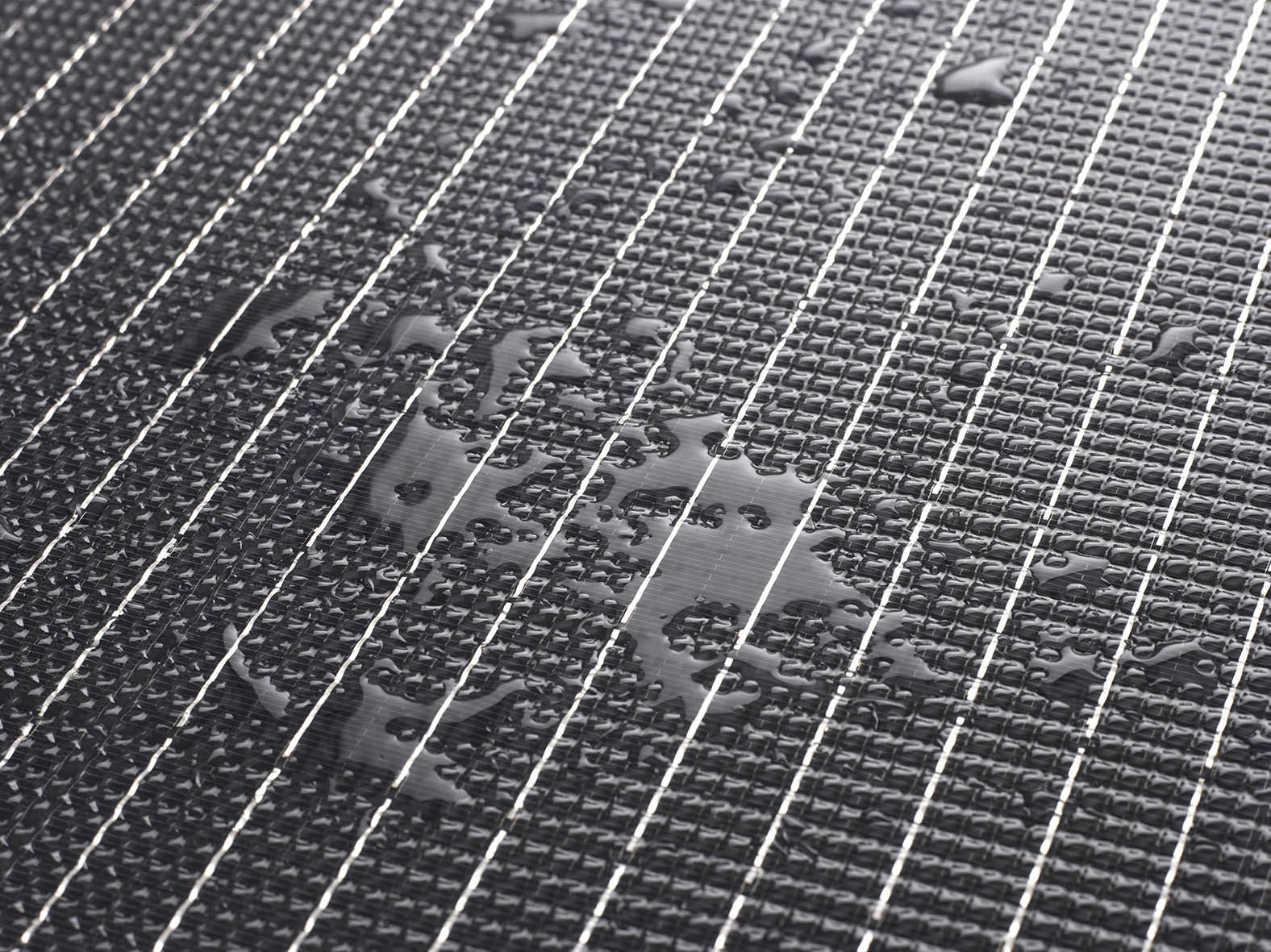

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

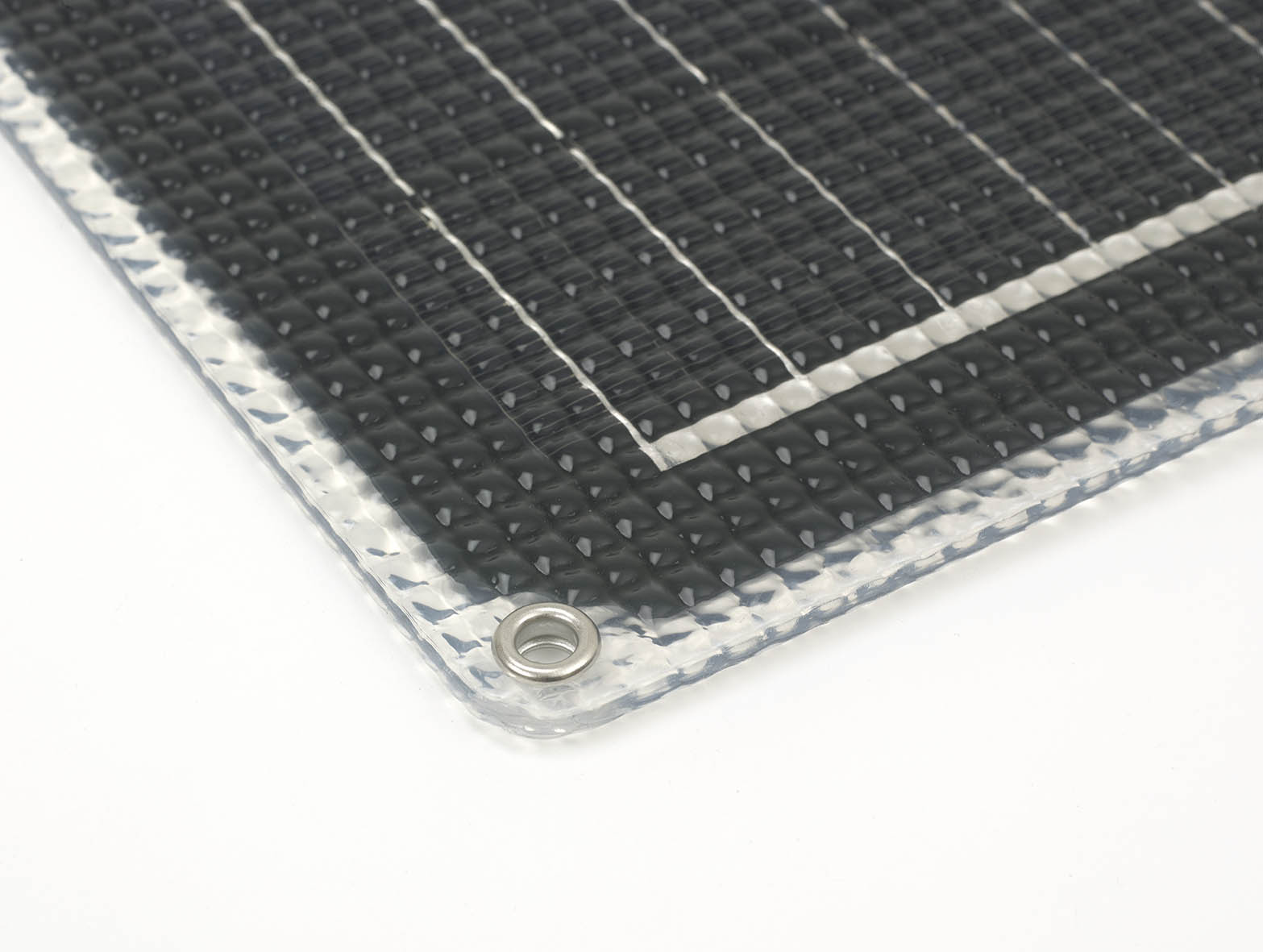

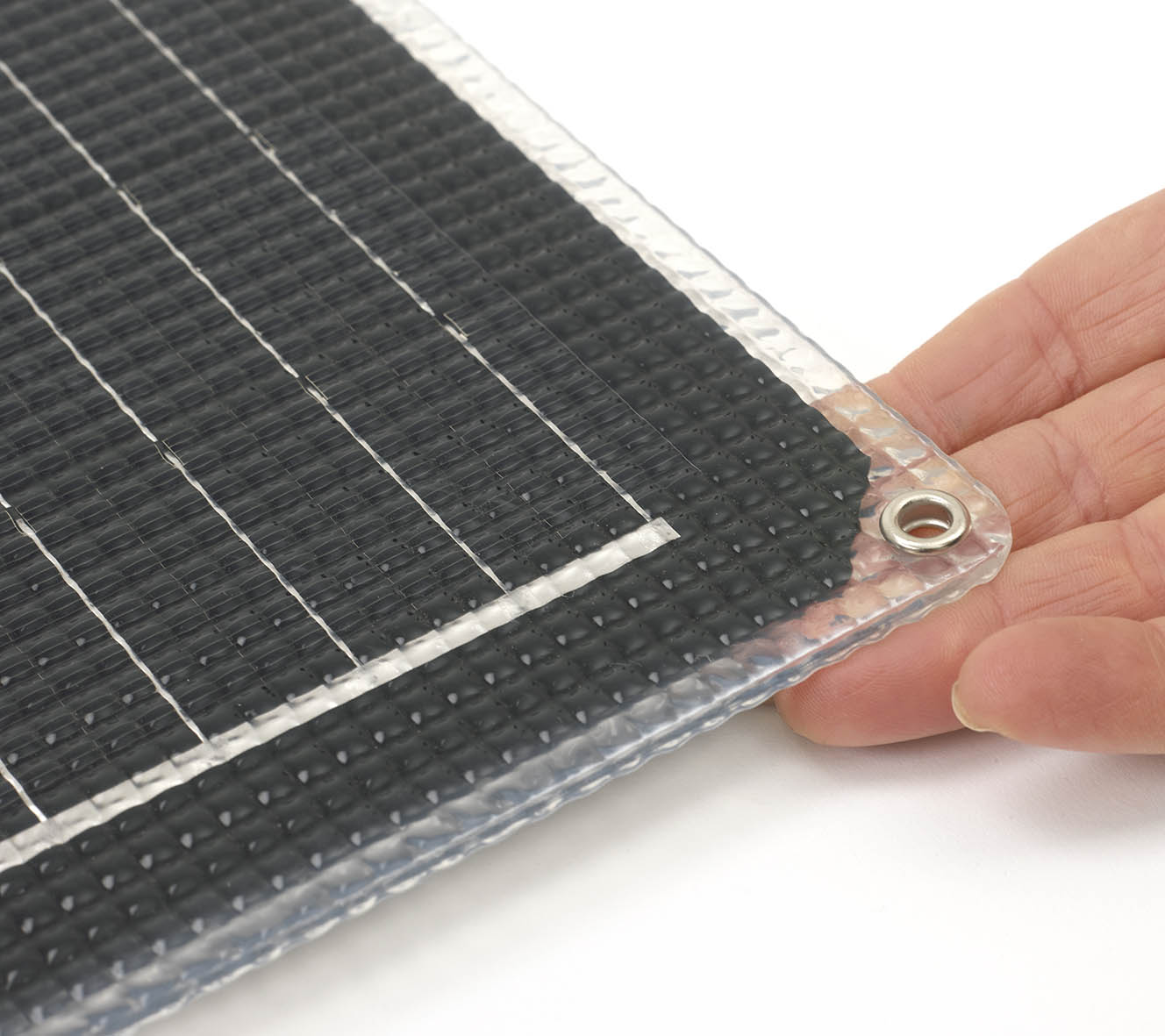

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Henkel MS939 elastic adhesive.

Installation method

Please only use the glue pattern below for land based vehicles and applications (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Add a controller

The PV Logic range of charge controllers includes the 10A and 20A dual battery PWM models and, for high performance and the ultimate in rapid solar charging, there is the all new MPPT Pro Plus. Both are capable of charging 12V and 24V batteries.

The MPPT Pro charge controller range increases solar yield by up to 20% over a standard charge controller by artificially modifying the voltage from s solar panel system to actively match any battery's requirements. This means that whatever the weather conditions your panels will deliver maximum power with minimum electrical loss.

MPPT charge controller comes with its very own free-to-download Bluetooth app (Apple and Android) to display how the solar system is performing.

Complete your kit with fixing accessories

Buy PV Logic stands, brackets and fixings here

Product support

Find the user manual, advice on expanding a solar system and answers to frequently asked questions on our dedicated support page for PV Logic Flexi Double ETFE Solar Panels.

Features

Warranty

Two year panel warranty

Please note

All of our semi flexible panels will only bend from the top (has the cable and logos) to the bottom a maximum of 10% of panel length.
Bending the panel greater than this, or trying to bend the panel from left to right will possibly damage the panel and also invalidate your warranty.
